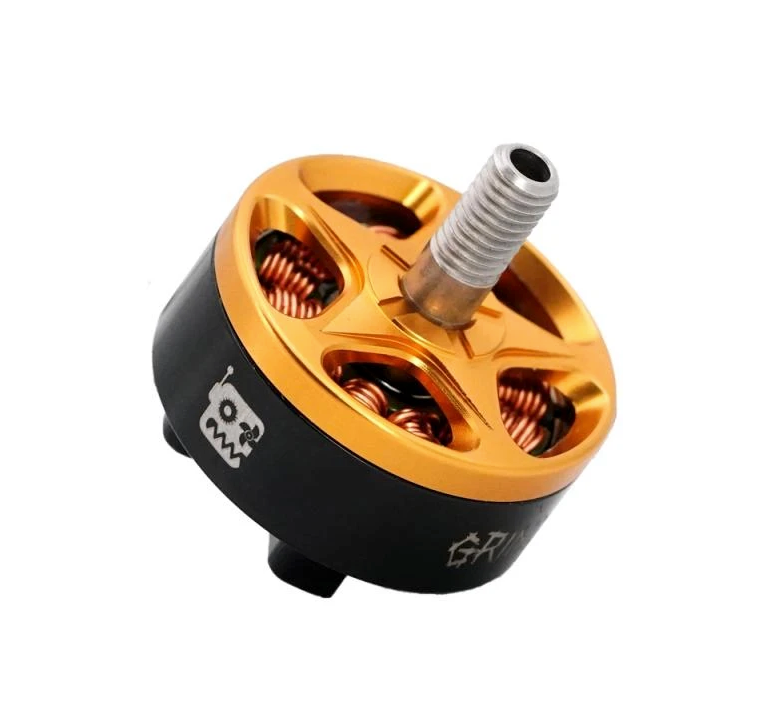

TBS GRINDER V3 2207 1750KV FREESTYLE MOTOR

TBS GRINDER V3 2207 1750KV FREESTYLE MOTOR

Regular price $20.99 USD
Regular price Sale price $20.99 USD
Sale Sold out

We took everything great about the grinder motors and made them better, thicker where it counts, stronger materials and a shiny gold top to show the bando you mean business.

SPECIFICATIONS

  • Stator Size (Diameter): 22mm*7mm
  • Kv: 1750kv
  • Magnets N52SH: Curved
  • Windings: 10.5 turn DLRK
  • Shaft Length (mm): 11.5mm
  • Shaft Diameter (mm): 3mm
  • Shaft material: Steel
  • Bearing: NSK693
  • Weight (With Wires) (g): 34.8g34.8g
  • Cells (Lipo): 4S-6S
  • Max Current (A): 45A
  • Max Burst Current (A): 50A
  • Internal Resistance (Rm): 66Ω
  • Wire Spec (AWG): 20#
  • Base Mounting Pattern: 16x16mm
  • Base Mounting Thread: M3 Thread
  • Motor Overall Dimensions: φ27.5mm*18.8mm
  • Motor Name: Grinder V3 KV1750

PACKAGE INCLUDES:

1 x TBS Grinder V3 2207 1750KV Freestyle Motor
